55kw 75hp aircompressors industrial screw type air compressor machine IP23 direct friven

  • >=1 Sets
    $5,150.00
Model Number:
BD-75HP 55kw IP23 direct friven
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 25 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction works , Advertising Company
Condition:
New
Type:
SCREW
Configuration:
Stationary
Power Source:
AC POWER
Lubrication Style:
Lubricated
Mute:
Yes
Place of Origin:
Guangdong, China
Brand Name:
ZAKF
Voltage:
380V
Dimension(L*W*H):
1900*1250*1600(mm)
Weight:
1230KG
Certification:
ISO9001 CE
Warranty:
1 Year
After-sales Service Provided:
Online support, online support
Color:
Blue
Product name:
Screw Air Compressor
Cooling method:
Air Cooling
Pressure:
0.8MPa(a)
Power:
55KW 75HP
Name:
ZAKF
Motor power:
55kw
Motor:
55KW B35 YK-225MA-2
Noise level:
78 db(A)
Supply Ability
Supply Ability:
5000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard wooden case
Port
Shenzhen
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 25 To be negotiated
Product Description

Product Application

Chemical industry

Auto Repair

Asphalt Mashinery

Paint Spraying

Packaging Machinery

Biopharmaceutical

Shuyin industry

Laser equipment

MODEL: 55KW Direct Air cooling compressor Parameter
Free air deliver
9.1 M3/min
Discharge pressure
0.8MPa(a)
Motor power
55kw
Motor speed
2960r/min
Voltage/HZ
380V/50HZ
Motor protection grade/insulation grade
IP23/F
Driving method
Direct connection
Noise level
78 db(A)
Cooling method
Air cooling
Lubricant
35L
Outlet air carry lubricant oil
<=3 ppm
Starting method
Y-△
Air outlet pipe diameter
Rp2"
Temperature of cooled outlet compressed air
<=Ambient temperature+15℃
Dimension/weight
1900*1250*1600(mm)/1230KG

Main Features

1) Intelligent control system

2)High efficiency
3)Energy saving
4)Environmental prodution
5)Super-quiet Sound Design
6)Design with humanity


Detailed Images

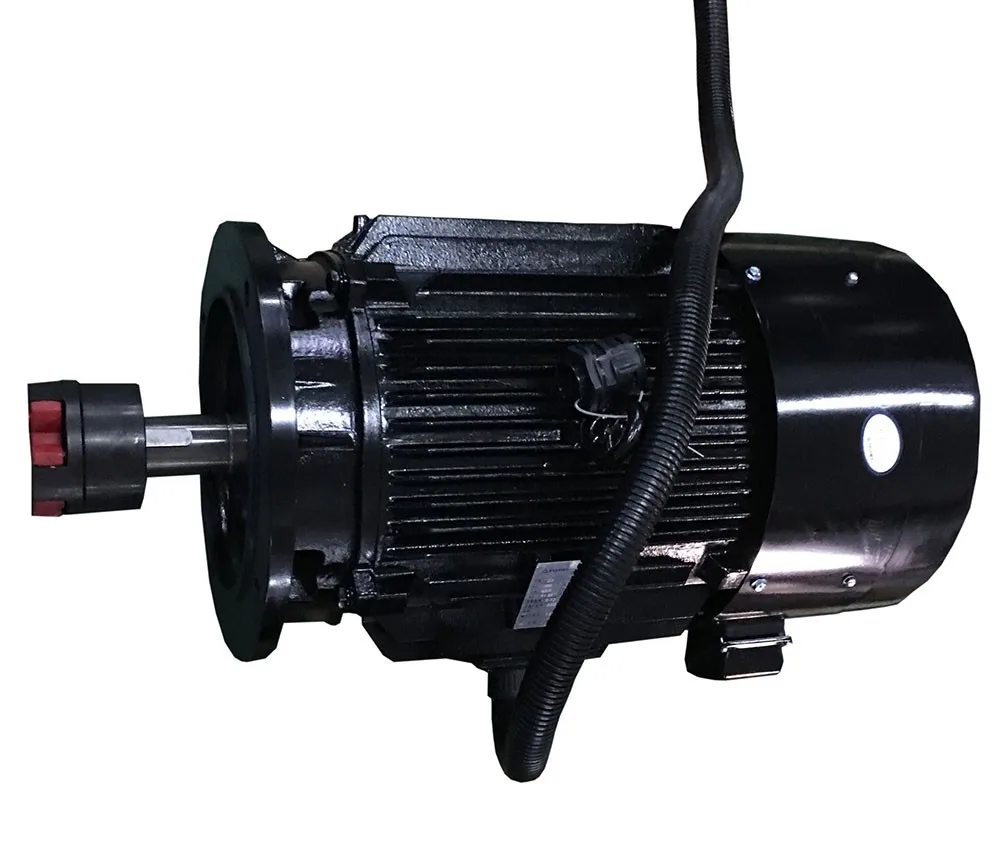

High qulity motor


Using high-quality nameBrand motor,Protection grade IP 23,insulation Grade F, also According to the user Special requirements Separate requirements Separate design




High qulity motor

Using high-quality nameBrand motor,Protection grade IP 23,insulation Grade F, also According to the user Special requirements Separate requirements Separate design

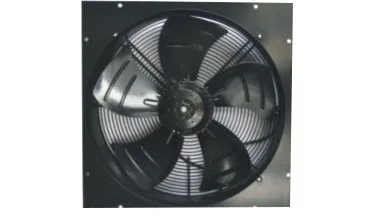

The high efficiency cooling fan

Low speed,low noise,strong wind,completely suitable for the temperature differences between different regions,reducing the discharge the temperature,prolong the service life of the seal and lubricating oil.


Sealing system

All piping connections are using the "O" typesealing ring,Fundamentally improve the antileakage level "O" type sealing ring,Fundamentally improve the antileakage level "O" type sealing ring by American automobileindustry Association standard effectivelyprevent oil leakage Sealing structure

Product Advantages

Optional setting pressure, and maintain a constant water pressure
Can the remote control
To save energy
High efficiency power-saving
More reliable
Energy conservation and environmental protection, equipment in place, enabling immediately
To reduce the noise of the air compressor
Scientific development of energy saving and emission reduction
Prolong the service life of air compressor

Our Company

We are ZAKF compressor manufacturing Co.,Ltd,the Largest and Professional air compressor manufacturing platform,we are a professional air compressor research,development and production of large enterprises.ZAKF compressor Design,manufacturing at a high starting point,advanced technology,superior level of systematization,its core competencies to guide the development trend of the industry,stable and reliable.ZAKF,the world's top screw machine,using 5:6 asymmetric tooth design.Energy saving inverter compressor running for more than three years the unit purchase price.We use high-quality nameBrand motor,Production grade IP23,insulation Grade F,also According to the user Special requirements Separate design.
ZAKF machine control consists of a fully automated computer system as a whole,the key points of each installation with a variety of sensors can be.The measurement of the running state and the all Chinese display on the screen,simple operation,high reliability.It has the function of self checking,root Accounting to the user demand volume,automatic adjustment of running state.Of course,we also provide competitive price and reliable quality for you.

Business philosophy:
Quality first,the credibility of the first,tocreat the best products and services to win-win cooperation,development and innovation to meet different customer needs,forge innovative,and strive to passenger and I win.

Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

* Supply of accessorise

* Information supply

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

* Machine maintenance

*  Proposal of improvement

Packing & Delivery
FAQ

Q:Are you a factory or trade company?
A:We are a factory,we provide screw Air compressors,Air receivers,UltraFilters,Dryers,Electronic condensate drains and Oil/Water separators
Q:How to pay?
A:T/T and L/C,Western Union,Paypal

Q:How to package&delivery?
A:we will use standard wooden case to package and shipped after finishing payment
Q:How about your monthly production?
A:8000sets/month
Q:How about the Energy saving effect of the air compressor?
A:Energy saving inverter compressor running for more than 3 years the unit purchase price
Q:How many services you will provide about air compressor?
A:we will provie perfect before-sales and after-sales for each machine
